   Plough Anchor

Product Name： Plough Anchor
Material ：stainless steel 316
Product Description：

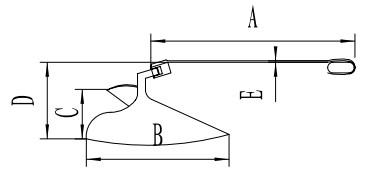

Art.No. A(mm) B(mm) C(mm) D(mm) E(mm)
HY6004-5KG 510 340 260 220 8~32
HY6005-7KG 560 380 270 230 8~32
HY6006-9KG 600 375 280 250 11~46
HY6007-10KG 620 400 290 270 11~46
HY6008-12KG 660 430 340 300 11~46
HY6009-15KG 730 490 370 330 13~50
HY6010-22KG 700 550 360 390 15~38
HY6011-27KG 780 600 460 360 15~40
HY6012-30KG 800 630 480 350 15~54
